This technology history page contains a photograph, which is one of several belonging to the photo gallery pages, which are part of several pages relating to the invention of the world's first automatic totalizator in 1913 and Automatic Totalisators limited, the Australian company founded in 1917 by George Julius, later Sir George, to develop manufacture and export these systems.

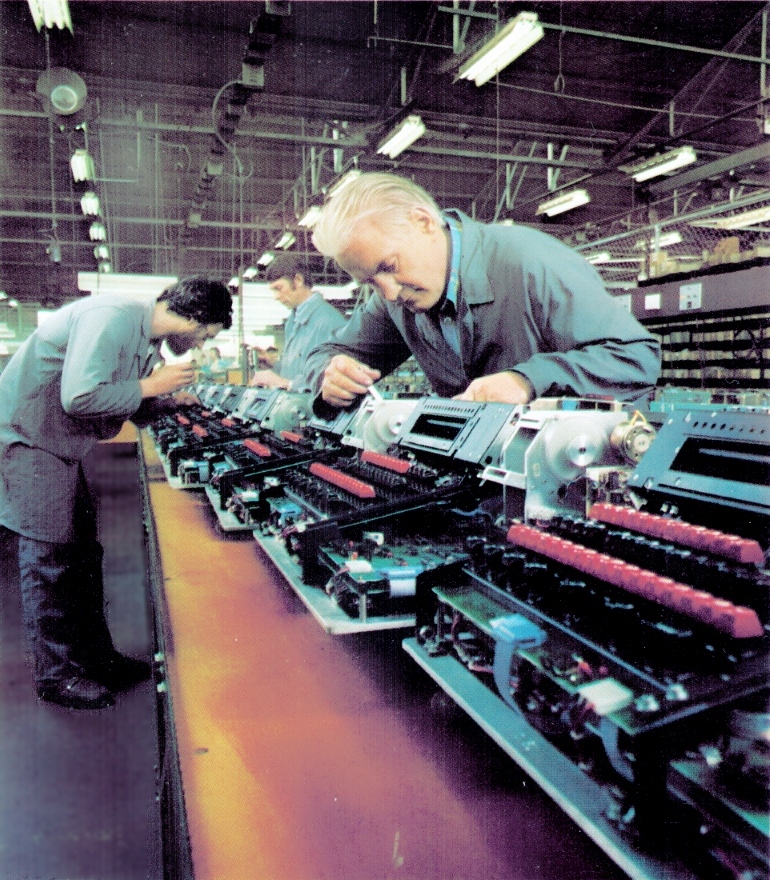

Development work on new products was increased during the year resulting in the release of a ticket issuing machine known as the J22, which incorporates some new and advanced technology. This terminal has created considerable interest amongst racing clubs, being more flexible than competitive products, and designed to achieve significant labour savings in the operation of the totalisator. Development work is continuing at a high priority on other advanced terminals for both on track and off track use as well as low cost computer systems to cater for the needs of smaller racing clubs.
The A.T.L. Model J22 Sell/Pay Terminal is a high performance transaction terminal designed to meet the demanding criteria essential to an on-course totalisator incorporating the flexibility required by modern operations.
The J22 is capable of selling and paying simultaneously on all pools and values operating at the course. It is this feature which allows a comprehensive totalisator service to be provided throughout the course either by single terminals, operating in restricted areas such as bars and restaurants or by terminals dedicated to specific functions in the main public betting areas.
A ticket printed on a J22 Terminal
A separate ticket is issued for each pool however this ticket may be of any value and can accommodate up to six runner selections. Further a single ticket is available for an 'each way' bet. A ticket may therefore accommodate equal investments on up to six runners for Win, Place and Each-Way or up to six runner selections for the combination pools, i.e. Quinella, Forecast, Double, Trio or Trifecta. There is no restriction in the number of selections in each leg of the combination pool providing the total does not exceed six. For example, a typical doubles ticket may have 6 & 9 selected in the first leg and 1,8,10 &14 selected in the second leg, which is a total of 8 combinations in the same ticket.
